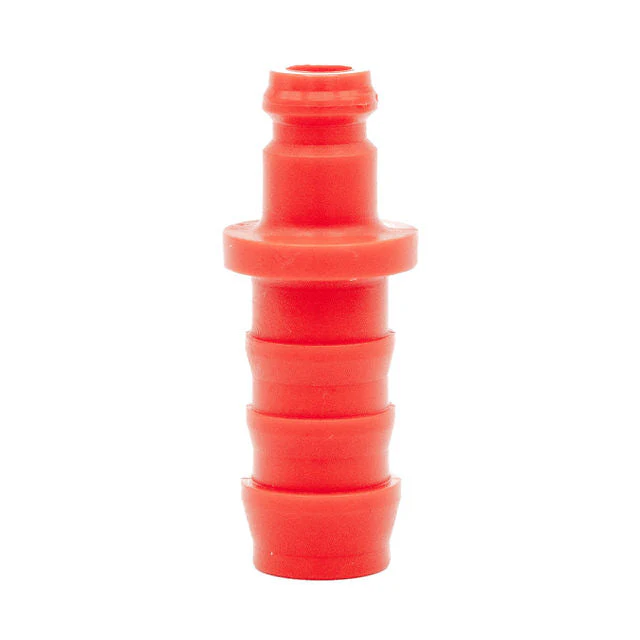

Tefen PA66 Red Plug - Hose Connector - 5mm Tube ID
Description
The special quick connector from Tefen offers a fast and reliable push to connect mechanism. The outer sleeve locks the plug into the socket. When the plug is disconnected, the socket acts as a shut-off valve. A variety of plugs can be connected and used, suitable for hydraulic or pneumatic systems.
Downloads
Note on choosing the correct part
- Fits Hose/Tube ID - refers to the Inner Diameter of the Hose/Tube you are using with the Tefen Fitting
- Fits Irrigation Hose/Tube OD - refers to the Outer Diameter of commonly used irrigation hoses
Product Specifications
- Fits Hose/Tube ID mm 5.0
- Length (L) mm 37.8
- Diameter (D) mm 16.7
- Body Colour Red
- Working Pressure14 Bar/200 PSI (@20°C)
- Min Temp °C4
- Max Temp °C90
- Material PA66
- Manufactured By Tefen
Features
- Strong and durable
- High impact resistance
- UV resistant
